This is a machine to cut fibers.Although 40 years has passed since it was developed, its certainty and durability of yarn nip are excellent and it is a very lasting product because there is no machine which exceeds this machine.

TYPE A

TYPE B

TYPE C

TYPE D

TYPE G

TYPE H

TYPE I

Summary

When a running yarn is broken due to some reason, the machine prevents the yarn from twisting around the feed roller or draw roller.

To prevent the breakage etc. of adjacent yarns, the power saving effect increases futher when this machine is used in combination with a photoelectron type breakage detector.

Features

�E

This machine cuts both coarse yarn and fine yarn excellently.

A sharp blade plunges into an elastic blade catcher and the blade reliably cut a yarn with guillotine method.

�E

After yarn breakage, the yarn is cut after holding the yarn feed side yarn to prevent harmful effects such as binding to adjacent normal yarns due to fluctuation of the end of yarn feed side yarn.

Therefore, the yarn feed side is held reliably.

�E

Because the structure of this machine is simple, it consists of relatively number of parts and hardly goes out of order.

Applications

Running yarn monitoring and yarn breakage detection for fiber spinning bar, drawing bar, winder, etc. ;Power saving; Safety

Specifications

Power supply

DC24V�@70mA Continuous rating

Cutting capacity

6,000denier or less

Yarn grip capacity

Tension 50g or less

Reference method

The standard product model numbers of yarn cutter are set according to the following model numbering system which includes type, external color, yarn feed side yarn guide, exit side yarn guide, surge voltage absorption diode, etc. Please used the model numbering system.

Model numbering system

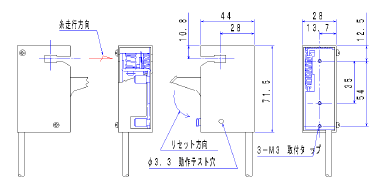

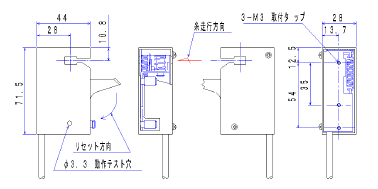

Reset direction

External color

Yarn feed side yarn guide

Exit side yarn guide

Surge voltage absorption diode

Right

2

Black zinc plating

Without diode

Left

With diode

(Example)

SW

2�@�@�@�|

A

B�@�@�|

D

Combination of different type guide cannot be selected.

Standard type can not use wide guide.

Wide type can not use standard guide.

If the thickness of yarn to be cut is 3,000 denier or more, please make a special note.
